refled002

refled002reference design / application evaluation kit | rohm co., ltd.-凯发k8一触即发

built-in boost mosfet, for automotive panel backlight applications, white led driver

the refled002 is a reference design of bd83a04efv-m led driver ic dedicated for automotive backlight application. it is including set of evaluation reports, design resources so that users can refer to board design as well as various test report provided in the design. bd83a04efv-m is a white led driver for lcd backlight. built-in mos for boost and 4ch constant current drivers for led drive, and it is suitable for high illumination led drive. it is suitable for middle size lcd panel drive because led pin maximum voltage is 50 v. the dimming is controlled by the pwm signal and can be set up to 20,000: 1@100 hz. it also supports analog dimming and can accommodate even higher brightness ranges by combining with pwm dimming. the design require led board attached to refled002-evk-001 board.


  • automotive backlight reference design
  • supporting bd83a04efv-m in boost operation
  • verified to satisfy emc cispr 25 class 5 standard at practical operating condition.
  • thermal characteristics tested
  • pcb design files are available

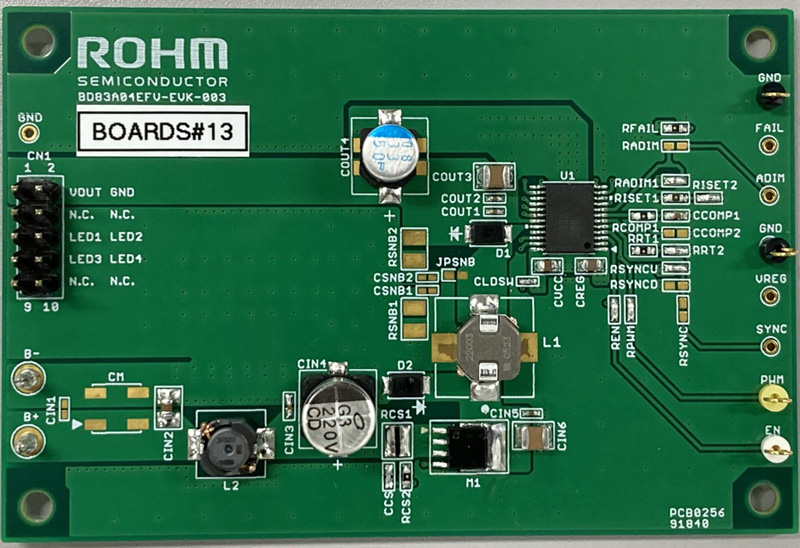

refled002-evk-001

design resources


  • refled002-evk-001

specifications


board number input voltage output channels output current topology size
refled002-evk-001 7v to 18v 4ch 80ma /ch boost 60mm x 80mm

distribution inventory


board number distributor quantity available
refled002-evk-001 -

key components


board number part number product category datasheet status spice ltspice thermal model symbol & footprint 3d step samacsys ecad library calc tool rohm solution simulator
refled002-evk-001 led drivers recommended -
refled002-evk-001 rb088lam-60tf schottky barrier diodes recommended -
refled002-evk-001 schottky barrier diodes recommended -
