with gan hemt, power factor correction, 240w 400v bm3g007muv reference board

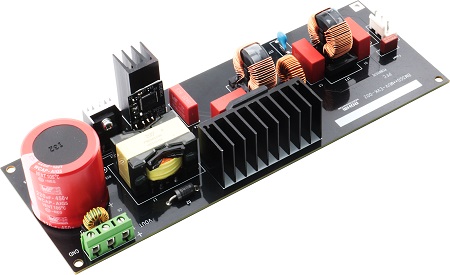

the bm3g007muv-evk-002 reference board outputs 400 v voltage from the input of 90 vac to 264 vac. the output current supplies up to 0.6 a.bm3g007muv has a built-in gan hemt (650v 70 mω), driver and protection circuit. by using this gan power stage, we achieved a maximum efficiency of 97.8%.
- the bd7695fj which is bcm method pfc controller ic is used.
- the bd7695fj supplies the system which is suitable for all of products that requires pfc.
- bcm is used for pfc part, and zero current detection reduces both switching loss and noise.
- thd is 8.4 % typical.
design resources
- bm3g007muv-evk-002
specifications
| board number | input voltage range | input frequency | output voltage | maximam output power | output current range | total harmonic distortion(thd) | pf(power factor) | efficiency | output ripple voltage | hold time | operating temperature range | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| bm3g007muv-evk-002 | 90 to 264vac | 47 to 63hz | 395v(typ) | 240w(max) iout = 0.6a | 0.0 to 0.6a *1 | 8.4%(typ) | 0.97(typ) ac230v iout = 0.6a | 97.8%(typ) | 10.4vpp(typ) ac90v iout = 0.6a *2 | 20ms(min) vout min 280v | -10 to 55deg.c |
remarks:
*1 cool the component surface temperature with fan, etc., if necessary, and the load application time so that the temperature does not exceed 105 ℃.
*2 not include spike noise
*1 cool the component surface temperature with fan, etc., if necessary, and the load application time so that the temperature does not exceed 105 ℃.
*2 not include spike noise
distribution inventory
| board number | distributor | quantity available |
|---|---|---|
| bm3g007muv-evk-002 | - | - |
key components
| board number | part number | product category | datasheet | status | spice | ltspice® ? | thermal model | symbol & footprint | 3d step | samacsys ecad library | calc tool | rohm solution simulator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| bm3g007muv-evk-002 | bm3g007muv-lb | gan hemt power stage ics | recommended | - | ||||||||
| bm3g007muv-evk-002 | bd7695fj | ac/dc converters ics | recommended | - | ||||||||
| bm3g007muv-evk-002 | fast recovery diodes | active | - | |||||||||
| bm3g007muv-evk-002 | rf05vam2s | fast recovery diodes | recommended | - | ||||||||
| bm3g007muv-evk-002 | zener diodes | recommended | - |
