rohm referencedesigns
refacdc045
refacdc045reference design / application evaluation kit | rohm co., ltd.-凯发k8一触即发
flyback type pwm mode isolated 5v 2a 12v 1a non-isolated 18.7v 0.1a 24w
this reference design uses bm2p061mf.
- the evaluation board outputs an isolated 5 v voltage, an isolated 12 v voltage and a non-isolated 18.7 v output from a 90 vac to 264 vac input, the maximum output power can output 24w.
- bm2p061mf which is pwm method dc/dc converter ic built-in 650 v mosfet is used.
- low on-resistance 1.0 ω 650 v mosfet built-in contributes to high efficiency (84.5 % typ).
- pwm controller for ac / dc power supplies, the bm2p061mf provides the optimum system for all products with outlets.
design resources

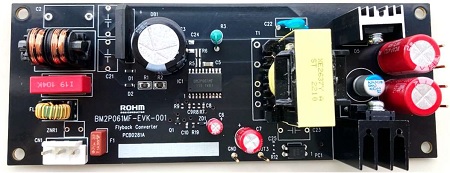

- bm2p061mf-evk-001
specifications
| board number | input voltage range | input frequency | output voltage1 | output current range1 | output ripple voltage1 | output voltage2 | output current range2 | output ripple voltage2 | output voltage3 | output current range3 | output ripple voltage3 | maximum output power | standby input power | power supply efficiency | oprating temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| bm2p061mf-evk-001 | 90 to 264v | 47 to 63hz | 5.0v(typ.) | 0.005 to 2.0a | 0.06vpp(typ.) *1 | 11.9v(typ.) | 0.05 to 1.0a | 0.08vpp(typ.) *1 | 18.7v(typ.) | 0.02 to 0.1a | 0.08vpp(typ.) *1 | 24.0w(max.) | 31mw(typ.) iout=0a vin=230v | 84.5%(typ.) | -10 to 65deg.c |
remarks:
*1 not include spike noise
*1 not include spike noise
distribution inventory
| board number | distributor | quantity available |
|---|---|---|
| bm2p061mf-evk-001 | - | - |
key components
| board number | part number | product category | datasheet | status | spice | ltspice® ? | thermal model | symbol & footprint | 3d step | samacsys ecad library | calc tool | rohm solution simulator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| bm2p061mf-evk-001 | bm2p061mf-z | ac/dc converters ics | recommended | - | ||||||||
| bm2p061mf-evk-001 | rfu02vsm8s | fast recovery diodes | recommended | - | ||||||||
| bm2p061mf-evk-001 | rfn1lam7s | fast recovery diodes | recommended | - | ||||||||
| bm2p061mf-evk-001 | rf101lam4s | fast recovery diodes | recommended | - | ||||||||
| bm2p061mf-evk-001 | 1ss355vm | switching diodes | recommended | - | ||||||||
| bm2p061mf-evk-001 | 2scr523ub | general purpose bipolar transistors | recommended | - | ||||||||
| bm2p061mf-evk-001 | zener diodes | recommended | - |
