pfc bcm (boundary current mode) method output 200 w 400 v (bd7693fj)

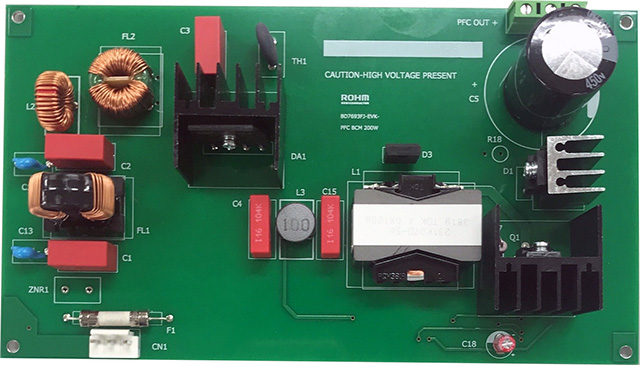

the bd7693fj-evk-001 reference board outputs 400v voltage from the input of 90vac to 264vac. the output current supplies up to 0.5a.the bd7693fj whict is bcm method pfc controller ic is used.
- the bd7693fj supplies the system shich is suitable for all of products that requires pfc.
- bcm is used for pfc part,and zero current detection reduces both switching loss and noise.
- thd is less than 6%.
design resources
- bd7693fj-evk-001
specifications
| board number | input voltage range | input frequency | output voltage | maximum output power | output current range | total harmonic distortion (thd) | pf(power factor) | efficiency | output ripple voltage | hold time | operating temperature | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| bd7693fj-evk-001 | 90 to 264vac | 47 to 63hz | 395v(typ.) | 200w iout=0.5a | 0 to 0.5a *1 | 3.6%(typ.) | 0.97(typ.) ac230v iout=0.5a | 96%(typ.) | 11vpp(typ.) ac90v iout=0.5a *2 | 20ms(min.) vout min 280v | -10 to 65deg.c |
remarks:
*1 please adjust operating time, within any parts surface temperature under 105 °c
*2 not include spike noise
*1 please adjust operating time, within any parts surface temperature under 105 °c
*2 not include spike noise
distribution inventory
| board number | distributor | quantity available |
|---|---|---|
| bd7693fj-evk-001 | - | - |
key components
| board number | part number | product category | datasheet | status | spice | ltspice® ? | thermal model | symbol & footprint | 3d step | samacsys ecad library | calc tool | rohm solution simulator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| bd7693fj-evk-001 | bd7693fj | ac/dc converters ics | recommended | - | ||||||||
| bd7693fj-evk-001 | rfnl10tj6s | fast recovery diodes | active | - | ||||||||
| bd7693fj-evk-001 | rfnl15tj6s | fast recovery diodes | active | - | ||||||||
| bd7693fj-evk-001 | rf05vam2s | fast recovery diodes | recommended | - | ||||||||
| bd7693fj-evk-001 | r6024knx | 190 to 800v power mosfets | recommended | solution simulator |
