dc-凯发k8一触即发

design resources:
凯发k8一触即发
pdf-image

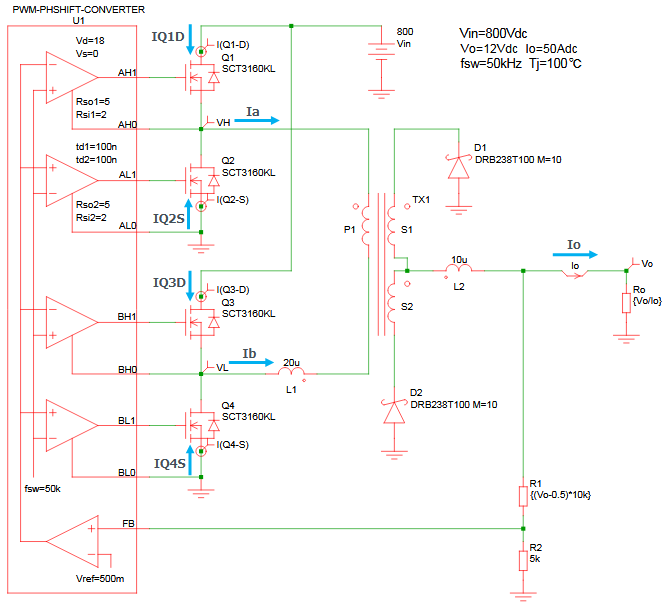

features:
  • input : vin=800vdc
  • output : vo=12vdc

    io=50adc

  • gatedrive : vd=18v

    r source=5ω
    r sink=2ω

  • q1,q2,q3,q4 : sct3160kl

    sic mosfet (1200v 17a)

  • d1,d2 : rb238t100

    sbd (40v 20a)

  • l1 : 20uh, l2 : 10uh
  • tj : 100°c
block diagram:
n/a
sample products used in this circuit
part number
 status datasheet package unit quantity minimum package quantity packing type constitution materials list rohs distribution inventory
sct3160kl 推荐品 450 30 tube inquiry
buy
rb238t100 新设计非推荐 to-220fn (3pin) 500 bulk inquiry
buy
