wi-sun enhanced han 无线模块“bp35c0-j11”是一款天线外置的小型表面贴装型wi-sun模块，搭载了接收灵敏度高的920mhz频段无线通信功能（rf）、微控制器以及支持wi-sun的内置大容量内存的lapis semiconductor无线通信lsi“ml7416n”。支持wi-sun profile的b路径和enhanced han，实现了15mm×19mm的小尺寸，适用于hems控制器及各种家电。同样，该产品也通过了日本电波法认证。
bp35c0-j11是wi-sun通信标准器（ctbu）。可与各种wi-sun设备保持高连接可靠性。
配备独有的“fota（固件升级更新）”功能，可以远程更新固件。适配器电路板“bp35c0-j11-t01”可从网路代理商购买，用于评估“bp35c0-j11”。可一件起购买，并且能轻松进行评估。
主要规格
特性：
antenna
none
package type
smd
wi-sun profile
wi-sun b route / enhanced han (dual)
vin[v]
2.6 to 3.6
frequency band used[mhz]
922.5 to 927.9
rx sensitivity[dbm]
-103
icc transmitting[ma]
47(20mw)
icc receiving[ma]
27
icc sleeping [ua]
4
host interface
uart
onboard system ic
ml7416n
dimensions [mm]
15.0x19.0x3.0
operating temperature (min.)[°c]
-30
operating temperature (max.)[°c]
85
特点：
- wi-sun b route / enhanced han compatible
- fota (firmware update over the air)
- ctbu (certified test bed unit)
- external antenna attachment
- industry's smallest class 15 mm x 19 mm size
- transmit power adjusted
- mac address written
- japan domestic radio wave law acquired certification
- mcu installed
- equipped with optimum firmware for hems
reference design / application evaluation kit
-
- evaluation board - bp359c
uart interface board
| user's guide |
|---|
-

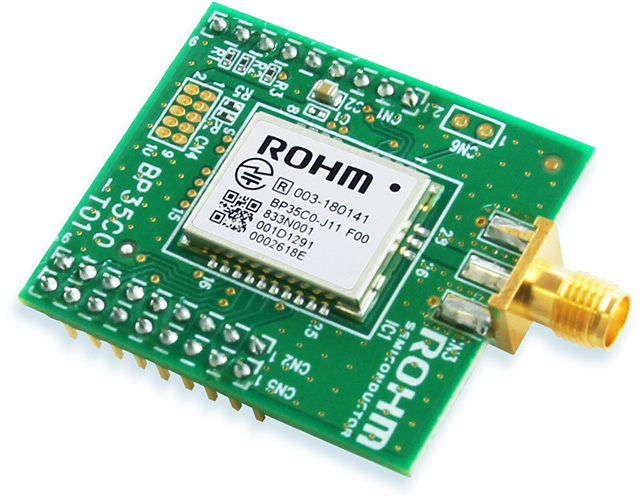

- evaluation board - bp35c0-j11-t01
bp35c0-j11-t01 is a wi-sun module evaluation board mounted on an adapter board.
| user's guide |
|---|
-

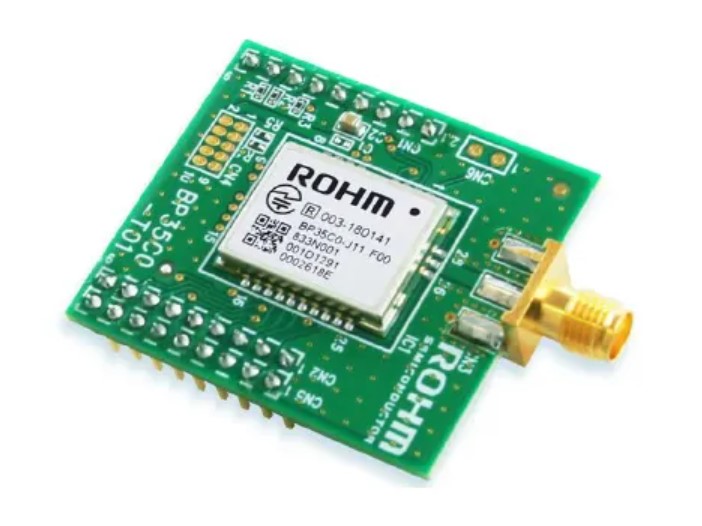

- evaluation board - bp35c1-j11-t01
bp35c1-j11-t01 is a wi-sun module evaluation board with an antenna connector.
-
bp35c2-j11 evaluation board
