数字温度传感器ic
bh1900nux
主要规格
型号 | bh1900nux-tr
status |
推荐品
封装 |
vson008x2030
包装数量 | 4000
最小独立包装数量 | 4000
包装形态 | taping
rohs |
yes
特性：
sensor type
digital
vcc(min.)[v]
2.7
vcc(max.)[v]
3.6
supply current[µa]
75
detect temperature accuracy[°c]
±3.0
detect temperature changeable function
no
operating temperature (min.)[°c]
-30
operating temperature (max.)[°c]
95
package size [mm]
2x3 (t=0.6)
特点：
- digital output: two-wire serial interface.
- 8 addresses.
- thermostat mode.
- small package
reference design / application evaluation kit
-

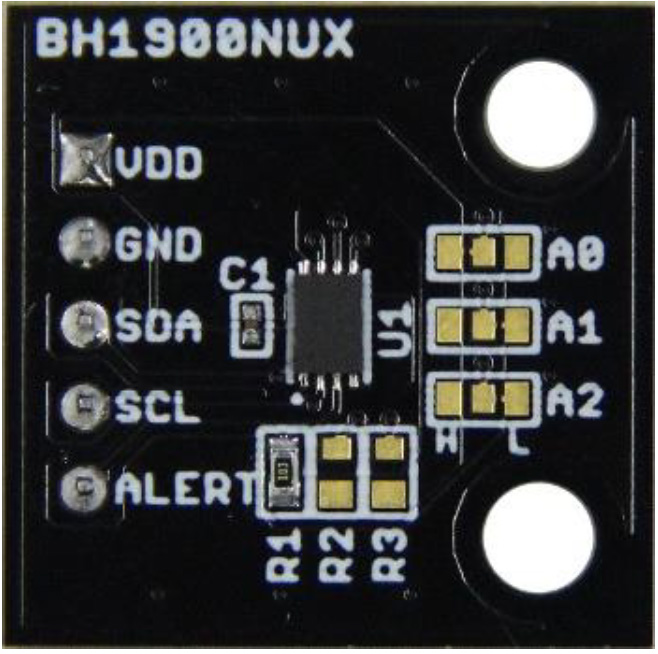

- evaluation board - bh1900nux-evk-001
bh1900nux-evk-001 is an evaluation board for bh1900nux, which is a rohm temperature sensor.
| user guide |
|---|
