anti-surge chip resistors
esr18ezpj
lineup
* fractions not supported (decimals only)
主要规格
特性：
automotive grade
yes
size[mm](inch)
3216(1206)
rated power[w]
0.5
resistance tolerance
j (±5%)
resistance range[ω]
1 to 10m
resistance(min.)[ω]
1
resistance(max.)[ω]
10000000
temperature coefficient[ppm/°c]
±200
operating temperature[°c]
-55 to 155
type
anti-surge
operating temperature (max.)[°c]
155
common standard
aec-q200 (automotive grade)
特点：
・保证耐电涌电压3kv・拥有高精度阻值的产品（±0.5%：d級）
・与通用贴片电阻相比，拥有较高的额定功率。
reference design / application evaluation kit
-

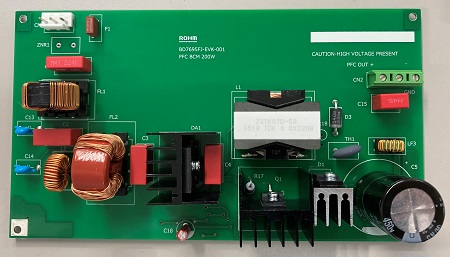

- evaluation board - bd7695fj-evk-001
boundary current mode method 200 w 400 v output (bd7695fj)
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p10b1j-evk-001
flyback type pwm mode isolated 12v 2.0a 24w
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p13b1j-evk-001
flyback type pwm mode isolated 12v 1.4a 16.8w
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
