车载用 2.7v～5.5v输入　2a 单通道 同步整流降压型dc-dc转换器
bd9s231nux-c

bd9s231nux-c是一款内置低导通电阻功率mosfet的同步整流降压型dc-dc转换器。可输出最大2a的电流。其开关频率高达2.2mhz，因此允许使用小型电感器。该产品采用电流模式控制，具有高速瞬态响应性能。另外，还内置有相位补偿电路，仅用很少的外置元器件即可构建应用产品。

主要规格


型号 | bd9s231nux-ce2
status | 推荐品
封装 | vson008x2020
包装形态 | taping
包装数量 | 4000
最小独立包装数量 | 4000
rohs | yes

功能安全:

凯发k8一触即发
类别 : fs supportive
a product that has been developed for automotive use and is capable of supporting safety analysis with regard to the functional safety.
学到更多

特性：

ch

1

integrated fet / controller

integrated fet

topology

buck

synchronous / nonsynchronous

synchronous

vin1(min.)[v]

2.7

vin1(max.)[v]

5.5

vout1(min.)[v]

0.8

vout1(max.)[v]

5.5

iout1(max.)[a]

2

sw frequency(max.)[mhz]

2.2

light load mode

no

en

yes

pgood

yes

operating temperature (min.)[°c]

-40

operating temperature (max.)[°c]

125

common standard

aec-q100 (automotive grade)

特点：

  • aec-q100 qualified(grade 1)
  • single synchronous buck dc/dc converter
  • adjustable soft start function
  • power good output
  • input under voltage lockout protection(uvlo)
  • short circuit protection(scp)
  • output over voltage protection(ovp)
  • over current protection(ocp)
  • thermal shutdown protection(tsd)

reference design / application evaluation kit


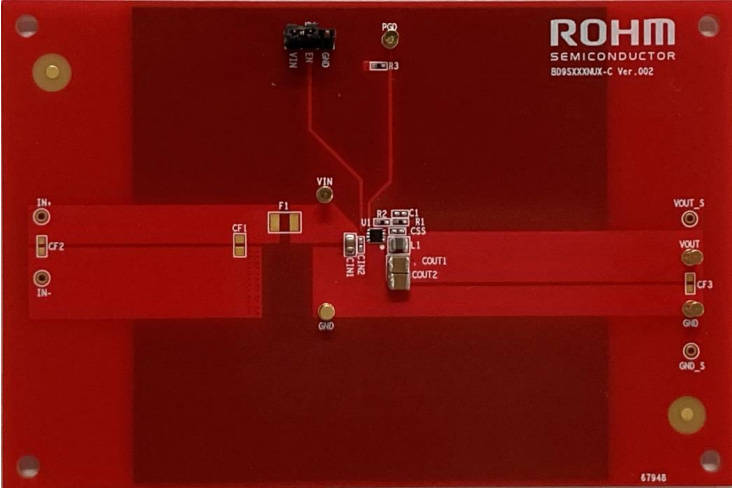

    • evaluation board - bd9s231nux-tsb-001

    • this evaluation board was developed for rohm’s single synchronous buck dc/dc converter bd9s231nux-c. bd9s231nux-c is a synchronous buck dc/dc converter with built-in low on resistance power mosfets. bd9s231nux-c accepts a power supply input range of 2.7v to 5.5v and generates a maximum output current of 2a. bd9s231nux-c generates an output voltage range of 0.8v to vin using external resistors. bd9s231nux-c is a current mode control dc/dc converter and features high-speed transient response.

    • user's guide
