车载用 2.7v～5.5v输入 2a 1ch 同步整流降压 dc/dc转换器bd9s201nux-c系列是内置低导通电阻的功率mosfet的同步整流降压型dc/dc转换器。最大可输出2a的电流。具有2.2mhz高速开关频率，适用于小型电感。具有基于电流模式控制的高速瞬态响应性能。另外，内置相位补偿电路，可用较少的外接零部件构建应用。
8-channel power tree reference design
for automotive adas and info-display
主要规格
功能安全:
特性：
ch
1
integrated fet / controller
integrated fet
topology
buck
synchronous / nonsynchronous
synchronous
vin1(min.)[v]
2.7
vin1(max.)[v]
5.5
vout1(min.)[v]
0.8
vout1(max.)[v]
5.5
iout1(max.)[a]
2
sw frequency(max.)[mhz]
2.2
light load mode
no
en
yes
pgood
yes
operating temperature (min.)[°c]
-40
operating temperature (max.)[°c]
125
package size [mm]
2x2 (t=0.6)
common standard
aec-q100 (automotive grade)
特点：
- aec-q100 qualified (grade 1)
- single synchronous buck dc/dc converter
- adjustable soft start function
- output discharge function
- power good output
- input under voltage lockout protection (uvlo)
- short circuit protection (scp)
- output over voltage protection (ovp)
- over current protection (ocp)
- thermal shutdown protection (tsd)
reference design / application evaluation kit
-

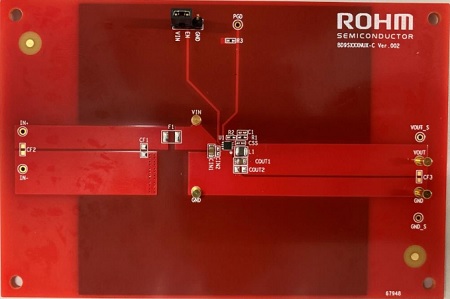

- evaluation board - bd9s201nux-tsb-001
this is an evaluation board for bd9s201nux-c. bd9s201nuxc is a synchronous buck dc/dc converter with built-in low on resistance power mosfets. the bd9s201nux-c accepts a power supply input range of 2.7v to 5.5v and generates a maximum output current of 2a. bd9s201nux-c generates an output voltage range of 0.8v to vin using external resistors. bd9s201nux-c is a current mode control dc/dc converter and features high-speed transient response.
| user's guide |
|---|
-
- reference design - refrpt001
- cispr25 class5 compliant 8 rails power tree reference design for automotive adas/infotainment application
this reference design is a power tree solution board developed for infotainment devices such as automotive clusters and center information displays and for ecus for adas application. the power system that can support functional safety is integrated on a single board to achieve the optimal configuration as a power tree. excellent emc performance that meets cispr25 class 5 even at all power supply rails are enabled, and reduces heat generation of each device by distributing high-efficiency dcdcs. in addition, two supervisor ics with self-diagnosis functions can monitor the output of all power rails and contribute to a higher level of functional safety.
- automotive infotainment/adas 8-channels power tree reference design
- verified to satisfy emc cispr 25 class 5 standard without common mode filter
- in order to avoid the am radio frequency bands all dc/dc converters operate at a switching frequency of 2.2 mhz or higher.
- thermal characteristics tested
- voltage monitoring for 8-channel power tree to improve the functional safety asil level
- space saving by integrating multiple power trees
