4.5v to 28v input, 2.0a integrated mosfet single synchronous buck dc/dc converterbd9e202fp4-z is a single synchronous buck dc/dc converter with built-in low on-resistance power mosfets. the light load mode control provides excellent efficiency characteristics in light-load conditions, which make the product ideal for equipment, and devices that demand minimal standby power consumption. bd9e202fp4-z is a current mode control dc/dc converter and features good transient response. it includes internal phase compensation. it achieves the high power density and offers a small footprint on the pcb by employing small package.
本产品不建议使用于车载设备。
主要规格
特性：
ch
1
integrated fet / controller
integrated fet
topology
buck
synchronous / nonsynchronous
synchronous
vin1(min.)[v]
4.5
vin1(max.)[v]
28
vout1(min.)[v]
0.7
vout1(max.)[v]
22.4
iout1(max.)[a]
2
sw frequency(max.)[mhz]
0.5
light load mode
yes
en
yes
pgood
no
operating temperature (min.)[°c]
-40
operating temperature (max.)[°c]
85
package size [mm]
2.8x2.9 (t=1.1)
特点：
- single synchronous buck dc/dc converter
- light load mode control
- frequency spread spectrum
- internal phase compensation
- over voltage protection (ovp)
- over current protection (ocp)
- short circuit protection (scp)
- thermal shutdown protection (tsd)
- under voltage lockout protection (uvlo)
- reduced external diode
- tsot23-6cj package
reference design / application evaluation kit
-

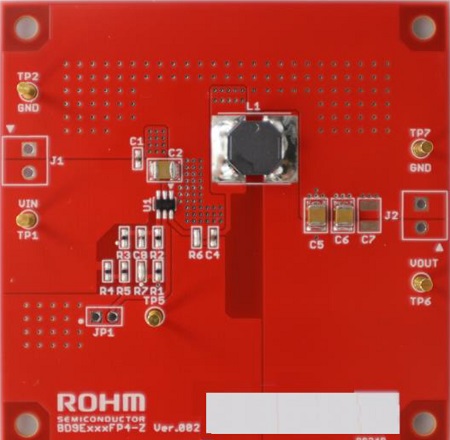

- evaluation board - bd9e202fp4-evk-001
this evaluation board was developed for rohm's single synchronous buck dc/dc converter bd9e202fp4-z. bd9e202fp4-z is a synchronous buck dc/dc converter with built-in low on resistance power mosfets. the light load mode control provides excellent efficiency characteristics in light-load conditions, which makes the product ideal for equipment and devices that demand minimal standby power consumption. bd9e202fp4-z has frequency spread spectrum. bd9e202fp4-z includes internal phase compensation. it achieves the high power density and offers a small footprint on the pcb by employing small package.
| user guide |
|---|
