2.7v～5.5v输入 2a mosfet内置 1ch同步整流 降压dc/dc转换器本产品面向工业设备市场、可保证长期稳定供货。是适合这些用途的产品。bd9a201fp4-lbz是内置低导通电阻的功率mosfet的同步整流降压dc/dc转换器。采用电流模式控制方式，容易进行相位补偿设定，负载响应性能良好。具有电源良好输出功能，可进行系统的时序控制。
主要规格
特性：
ch
1
integrated fet / controller
integrated fet
topology
buck
synchronous / nonsynchronous
synchronous
vin1(min.)[v]
2.7
vin1(max.)[v]
5.5
vout1(min.)[v]
0.8
vout1(max.)[v]
3.85
iout1(max.)[a]
2
sw frequency(max.)[mhz]
1
light load mode
no
en
yes
pgood
yes
operating temperature (min.)[°c]
-40
operating temperature (max.)[°c]
85
package size [mm]
2.92x2.8 (t=0.95)
特点：
- long time support product for industrial applications
- single synchronous buck dc/dc converter
- constant pwm mode control
- power good function
- over voltage protection (ovp)
- over current protection (ocp)
- short circuit protection (scp)
- thermal shutdown protection (tsd)
- under voltage lockout protection (uvlo)
- tsot23-8l package
reference design / application evaluation kit
-

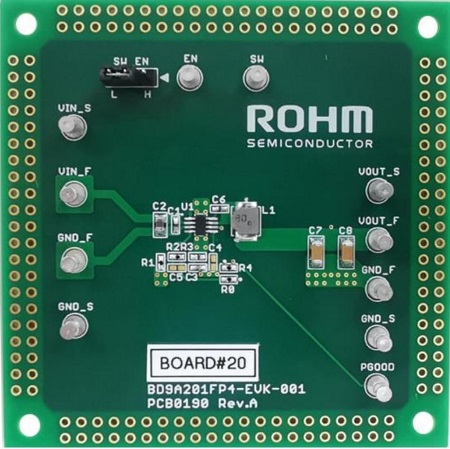

- evaluation board - bd9a201fp4-evk-001
this evk has been developed for rohm’s synchronous buck dc/dc converter customers evaluating bd9a201fp4-lbz and outputs 1.8v from 5v input voltage. the bd9a201fp4-lbz accepts a power supply input range of 2.7v to 5.5v and generates output voltage ranging from 0.8v to 0.7 x vin using external resistors. the operating frequency is fixed at 1000 khz. the current mode control dc/dc converter provides high-speed transient response performance.
| user guide |
|---|
