绝缘耐压3750vrms 1ch绝缘栅极驱动器主要规格
功能安全:
特性：
isolation voltage[vrms]
3750
channel
1
vcc1(min.)[v]
4.5
vcc1(max.)[v]
5.5
vcc2(min.)[v]
16
vcc2(max.)[v]
24
iout(max.)[a]
4
i/o delay time(max.)[ns]
65
min. input pulse width[ns]
60
operating temperature (min.)[°c]
-40
operating temperature (max.)[°c]
125
switching controller
no
temperature monitor
no
package size [mm]
3.5x10.2 (t=1.9)
common standard
aec-q100 (automotive grade)
特点：
- aec-q100 qualified(grade1)
- providing galvanic isolation
- active miller clamping
- under-voltage lockout function
- ul1577(pending)
reference design / application evaluation kit
-

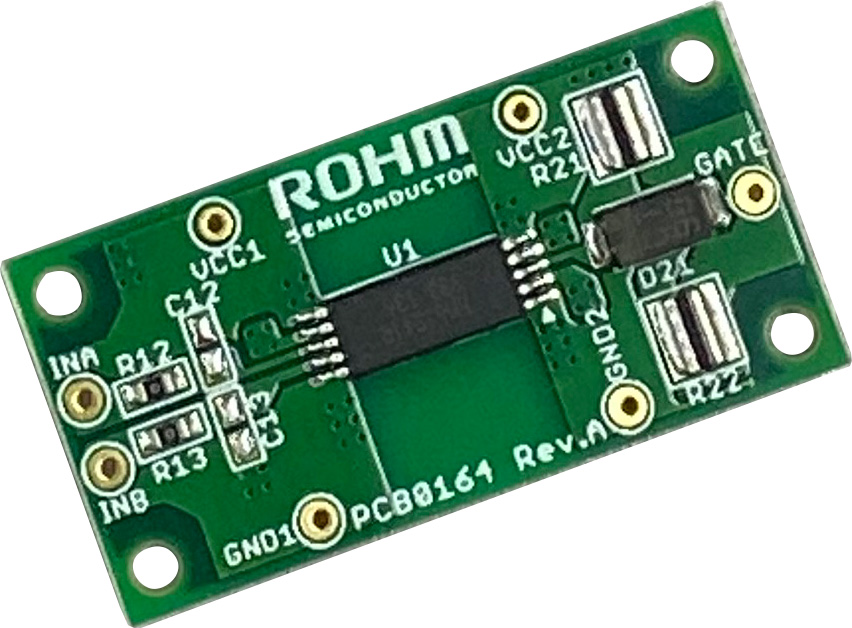

- evaluation board - bm61s41rfv-evk001
the bm61s41rfv-evk001 board can be driving sic power devices. the input-side power supply voltage is from 4.5 to 5.5 v. the output-side power supply is from 16 to 24 v. the bm61s41rfv-c has power supply protections which are the under-voltage lockout (uvlo) function at input-side and output-side. the active miller clamping is included for gate control. the bm61s41rfv-evk001 allows designers to evaluate rohm’s gate driver family for various applications.
| user's guide |
|---|
-

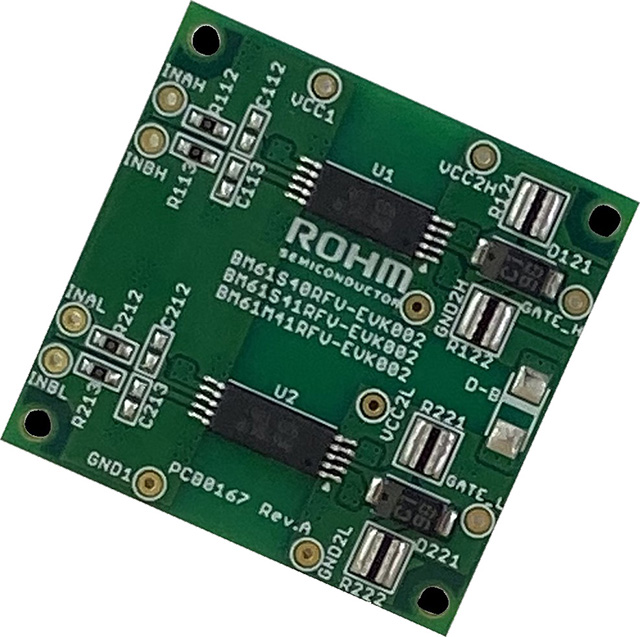

- evaluation board - bm61s41rfv-evk002
the bm61s41rfv-evk002 board can be driving two sic power devices such as for high-side and low-side on half-bridge application. the input-side power supply voltage is from 4.5 to 5.5 v. the output-side power supply is from 16 to 24 v.
| user's guide |
|---|
-
- reference design - reftplpfc001
- 6.6kw totem-pole pfc bidirectional power converter
这是用于电动汽车的totem-pole 双向电源转换器的参考设计。通过采用sic mosfet，可以高开关频率工作，实现了高效率、小体积以及轻量化。
可用于电动汽车充电器、obc、ups和太阳能系统等大功率充电系统。通过使用此参考设计，用户可以加快 sic mosfet 系统的设计，从而大大缩短产品开发周期。
此参考设计与 esc 的“用于电动汽车的 clllc 全桥双向电源转换器”无缝联动，可以构建诸如 obc 等应用。- ac-dc totem-pole pfc 双向电源转换
- 比igbt小约40%
- 数字控制双向输出
- 可调整输出电压
- 高效率 ＞ 98%
-
- reference design - refclllc001
- 6.6kw dc-dc clllc bidirectional power converter
这是用于电动汽车的clllc full bridge bidirectional power converter的参考设计。通过采用sic mosfet，可以高开关频率工作，实现了高效率、小体积以及轻量化。
可用于电动汽车充电器、obc、ups和太阳能系统等大功率充电系统。通过使用此参考设计，用户可以加快 sic mosfet 系统的设计，从而大大缩短产品开发周期。
此参考设计与 esc 的“用于电动汽车的 clllc 全桥双向电源转换器”无缝联动，可以构建诸如 obc 等应用。- dc-dc clllc full bridge 双向电源转换
- 比igbt小约50%
- 高输出（6.6kw）
- 高效率（99%以上）
- 数字控制双向输出
- 可调整输出电压
-
- application evk - apevk66001
- industrial 3.6kw totem pole pfc application evk
various applications are equipped with ac/dc functions, and the totem pole pfc topology is the standard circuit.the tppfcsic-evk-301 implements a single-phase ac/dc conversion stage in totem pole pfc topology. key components are rohm gen.4 sic mosfets (sct4045dr) as the main high-frequency switching elements, as well as the bm61s41 single-channel isolated gate driver ic. in addition, sj mosfets and auxiliary power supply, among other components from rohm, were utilized to create a high-performance ac/dc circuit for single-phase operation.tppfcsic-evk-301 reaches up to 98.5％ efficiency at 230vac.if this totem pole pfc reference design is coupled with a secondary stage of comparable efficiency, it becomes possible to achieve the 80 titanium target efficiency of power supply products. moreover, this contributes to enhancing the annual performance factor (apf) of air conditioners.
this reference design consists of two boards. each is shown below.
- tppfcsic-evk-201_pcb3051：totem pole pfc board
- tppfcsic-evk-201_pcb3052 : aux power supply board
the software for this reference design can be downloaded from below.
