绝缘耐压3750vrms 1ch绝缘栅极驱动器主要规格
功能安全:
特性：
isolation voltage[vrms]
3750
channel
1
vcc1(min.)[v]
4.5
vcc1(max.)[v]
5.5
vcc2(min.)[v]
16
vcc2(max.)[v]
20
iout(max.)[a]
4
i/o delay time(max.)[ns]
65
min. input pulse width[ns]
60
operating temperature (min.)[°c]
-40
operating temperature (max.)[°c]
125
switching controller
no
temperature monitor
no
package size [mm]
3.5x10.2 (t=1.9)
common standard
aec-q100 (automotive grade)
特点：
- aec-q100 qualified(grade1)
- providing galvanic isolation
- active miller clamping
- under-voltage lockout function
- over-voltage protect function
- ul1577(pending)
reference design / application evaluation kit
-

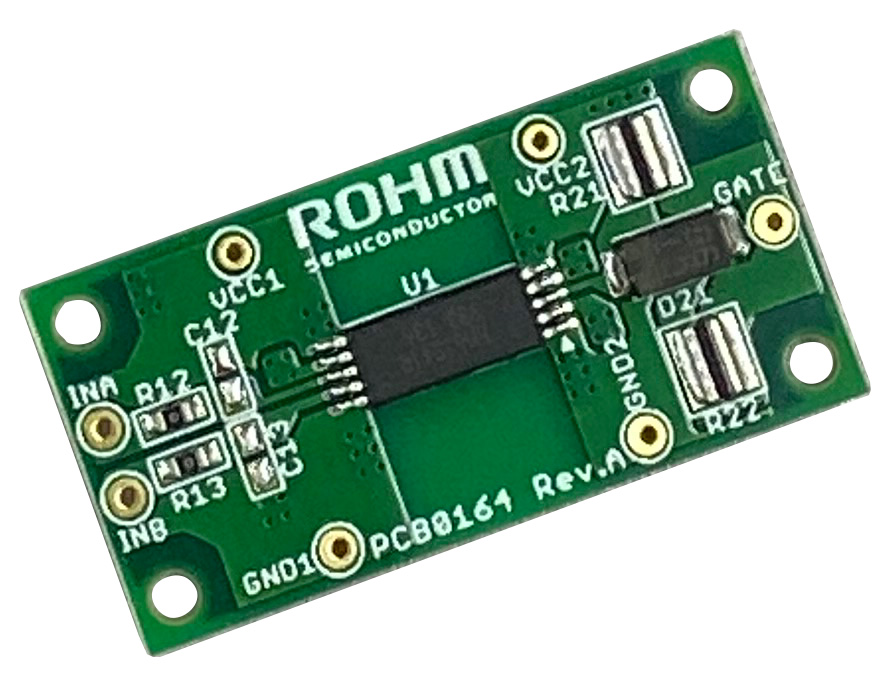

- evaluation board - bm61s40rfv-evk001
the bm61s40rfv-evk001 board can be driving sic power devices. the input-side power supply voltage is from 4.5 to 5.5 v. the output-side power supply is from 16 to 20 v. the bm61s40rfv-c has power supply protections which are the under-voltage lockout (uvlo) function at input-side and output-side, and the over-voltage protect (ovp) function at output side.
| user's guide |
|---|
-

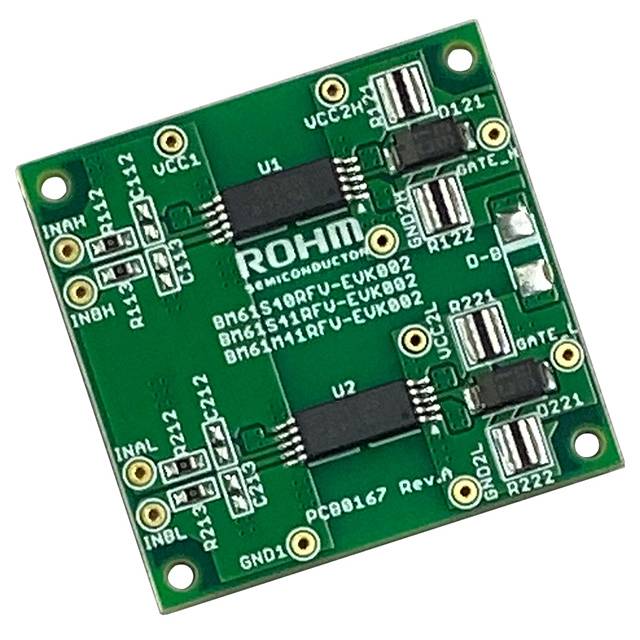

- evaluation board - bm61s40rfv-evk002
the bm61s40rfv-evk002 board can be driving two sic power devices such as for high-side and low-side on half-bridge application. the input-side power supply voltage is from 4.5 to 5.5 v. the output-side power supply is from 16 to 20 v. the bm61s40rfv-c has power supply protections which are the under-voltage lockout (uvlo) function at input-side and output-side, and the over-voltage protect (ovp) function at output side.
| user's guide |
|---|
