绝缘耐压3750vrms 1ch绝缘栅极驱动器主要规格
功能安全:
特性：
isolation voltage[vrms]
3750
channel
1
vcc1(min.)[v]
4.5
vcc1(max.)[v]
5.5
vcc2(min.)[v]
9
vcc2(max.)[v]
24
iout(max.)[a]
4
i/o delay time(max.)[ns]
65
min. input pulse width[ns]
60
operating temperature (min.)[°c]
-40
operating temperature (max.)[°c]
125
switching controller
no
temperature monitor
no
package size [mm]
3.5x10.2 (t=1.9)
common standard
aec-q100 (automotive grade)
特点：
- aec-q100 qualified(grade1)
- providing galvanic isolation
- active miller clamping
- under-voltage lockout function
- ul1577(pending)
reference design / application evaluation kit
-

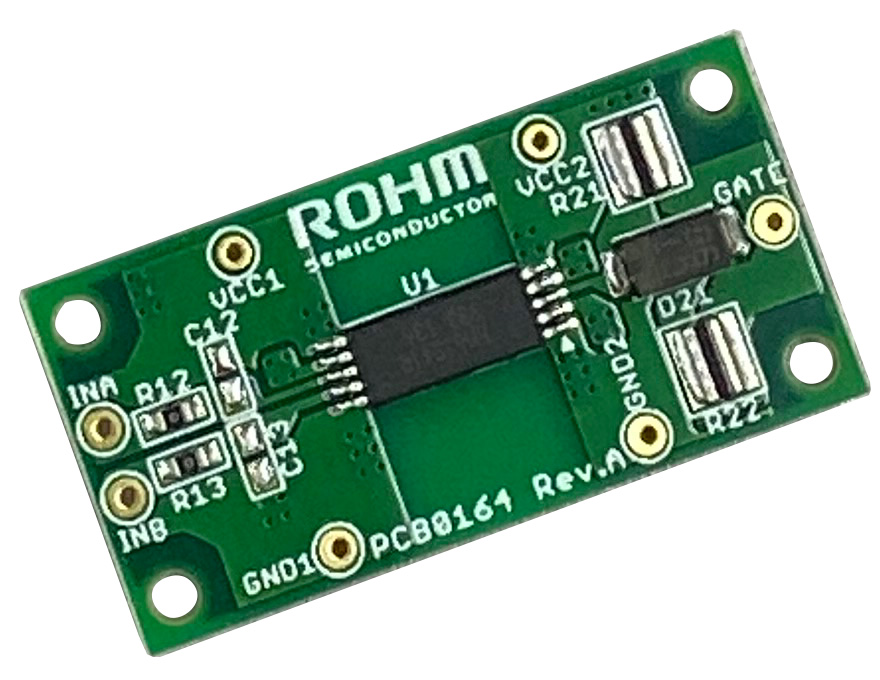

- evaluation board - bm61m41rfv-evk001
the bm61m41rfv-evk001 board can be driving mosfet power devices. the input-side power supply voltage is from 4.5 to 5.5 v. the output-side power supply is from 9 to 24 v. the bm61m41rfv has power supply protections which are the under-voltage lockout (uvlo) function at input-side and output-side. the active miller clamping is included for gate control. the bm61m41rfvevk001 allows designers to evaluate rohm’s gate driver family for various applications.
| user's guide |
|---|
-

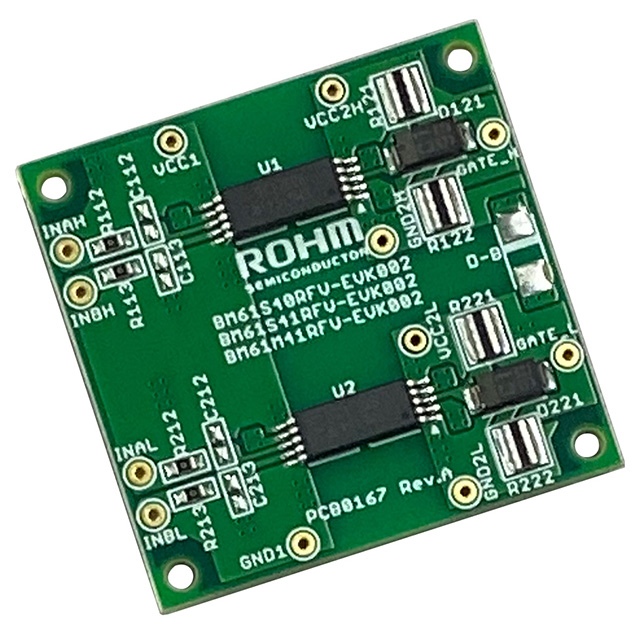

- evaluation board - bm61m41rfv-evk002
the bm61m41rfv-evk002 board can be driving two mosfet power devices such as for high-side and low-side on half-bridge application. the input-side power supply voltage is from 4.5 to 5.5 v. the output-side power supply is from 9 to 24 v.
| user's guide |
|---|
-
- reference design - refpdt001
- integrating battery charging algorithm, 2.5kw llc dcdc converter
the refpdt001 evk is a digital design platform for 2.5kw dc/dc convertor based on full bridge llc topology with an output 55v/ 45a with an input dc bus volatge of 380v. the evk supports battery charging alogrithm with constant voltage and constant curnt operation to be used with 48v lithum ion battery.
- constant current operation
- constant voltage operation
- output over voltage protection
- output over current protection
- reverse battery protection
- can communication
- rs485 communication
- lcd interface
-
- application evk - apevk66001
- industrial 3.6kw totem pole pfc application evk
various applications are equipped with ac/dc functions, and the totem pole pfc topology is the standard circuit.the tppfcsic-evk-301 implements a single-phase ac/dc conversion stage in totem pole pfc topology. key components are rohm gen.4 sic mosfets (sct4045dr) as the main high-frequency switching elements, as well as the bm61s41 single-channel isolated gate driver ic. in addition, sj mosfets and auxiliary power supply, among other components from rohm, were utilized to create a high-performance ac/dc circuit for single-phase operation.tppfcsic-evk-301 reaches up to 98.5％ efficiency at 230vac.if this totem pole pfc reference design is coupled with a secondary stage of comparable efficiency, it becomes possible to achieve the 80 titanium target efficiency of power supply products. moreover, this contributes to enhancing the annual performance factor (apf) of air conditioners.
this reference design consists of two boards. each is shown below.
- tppfcsic-evk-201_pcb3051：totem pole pfc board
- tppfcsic-evk-201_pcb3052 : aux power supply board
the software for this reference design can be downloaded from below.
