2ch 半桥栅极驱动器
bd16950efv-c
主要规格
型号 | bd16950efv-ce2
status |
推荐品
封装 |
htssop-b24
包装数量 | 2000
最小独立包装数量 | 2000
包装形态 | taping
rohs |
yes
功能安全:
类别 : fs supportive
a product that has been developed for automotive use and is capable of supporting safety analysis with regard to the functional safety.
特性：
power supply voltage (max.) [v]
40
power supply voltage (min.) [v]
5.5
vcc (max.)[v]
40
output on resistance (typ.)[ω]
10
number of motors
1
vref・pwm
-
current limit
-
high speed drive
-
automotive class
yes
operating temperature (min.)[°c]
-40
operating temperature (max.)[°c]
125
package size [mm]
7.8x7.6 (t=1)
common standard
aec-q100 (automotive grade)
特点：
- aec-q100 qualified
- 2ch half-bridge gate drivers
- 4 external mosfets are controlled independently
- half-bridge control modes are selected by spi
- slew rates are controlled with constant source/sink current.
- 500 khz oscillation for charge pump.
- 16bit spi
reference design / application evaluation kit
-
- evaluation board - bd16950efv-evk-001

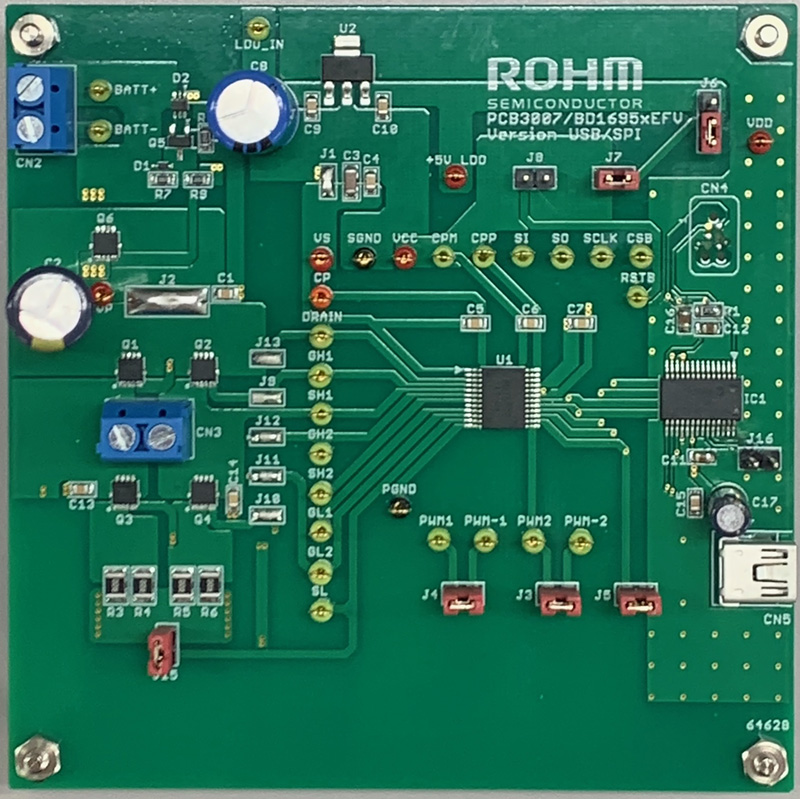

evaluation kit for automotive 2-channel half-bridge gate driver ic
| user guide | block diagram | schematic | part list | layout (pdf) | layout (cad data) |
|---|---|---|---|---|---|
