high voltage protection of cc pins usb type-c power delivery controllerbd93f10mwv is a full function usb type-c power delivery (pd) controller that supports usb pd using base-band communication. it is compatible with usb type-c specification and power delivery specification. bd93f10mwv includes support for the pd policy engine and communicates with an embedded controller or the soc via host interface.
本产品不建议使用于车载设备。
主要规格
特性：
supply voltage(min.)[v]
3.1
supply voltage(max.)[v]
20
power role
sink
data role
ufp
alternate mode
no
dead battery support
yes
policy manager
integrated
connected the required initial voltage
5v to 20v variable
operating temperature (min.)[°c]
-30
operating temperature (max.)[°c]
85
package size [mm]
5x5 (t=1)
特点：
- 32bit arm® cortex®-m0 processor embedded
- usb type-c specification ver.1.3 compatible
- usb pd specification ver.3.0 compatible
- integrated vbus n-ch mosfet switch gate driver
- integrated vbus discharge switch
- protection voltage of cc pins is 28v
- supports dead battery operation
- i²c interface for host communication
reference design / application evaluation kit
-

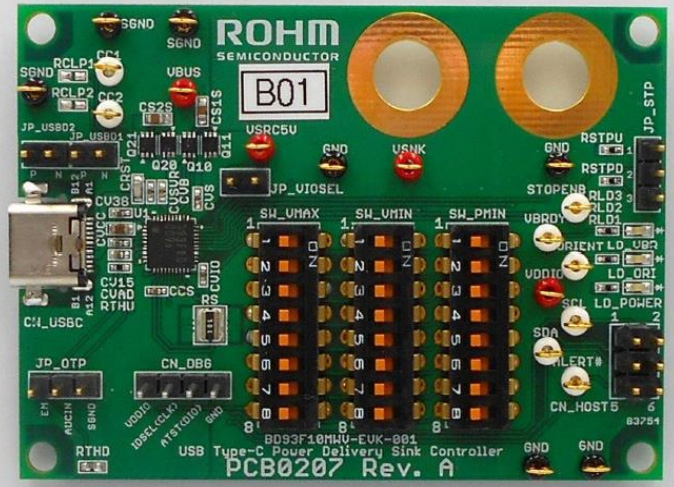

- evaluation board - bd93f10mwv-evk-001
the evk assumes stand-alone operation in the dead battery mode, so this evk does not need an external power source and works as a vbus powered product. the board will supply power and voltage via vsnk terminal based on the negotiation contracted with the source. therefore, any existing board that is powered by an ac adapter or a regulated power supply up to 80w/20v can work and be evaluated with the evk as a type-c/pd power source.
| quick start guide | user's guide |
|---|---|
