灌入侧端口用usb type-c检测和保护ic主要规格
特性：
supply voltage(min.)[v]
4
supply voltage(max.)[v]
5.5
power role
sink
data role
ufp
alternate mode
no
dead battery support
yes
policy manager
type-c only
connected the required initial voltage
type-c 5v
operating temperature (min.)[°c]
-30
operating temperature (max.)[°c]
85
package size [mm]
3x2 (t=0.6)
特点：
- usb type-c specification 1.0 to 1.3 support
- usb type-c plug attach and detach detection
- usb type-c plug orientation detection
- usb type-c current detection
- vbus over voltage and under voltage protection
- direct vbus power supply operation support
- dead-battery operation support
- integrated rd resistor
reference design / application evaluation kit
-

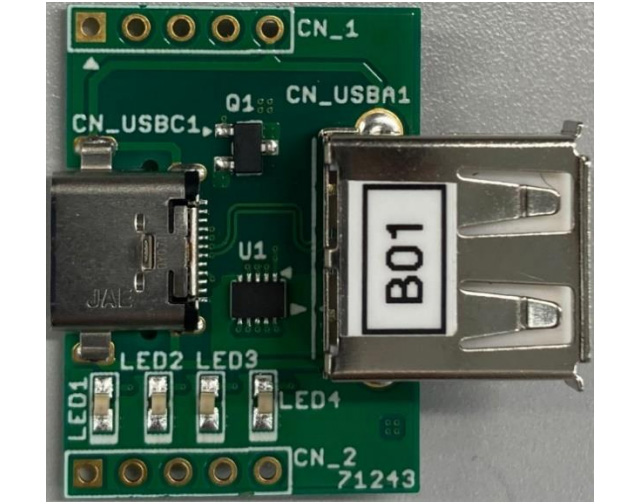

- evaluation board - bd91n01nux-evk-001
the evk premises operation by vbus power, so this evk does not require an external power source. the evk has a type-a receptacle and is provided power from a source device connected to the type-c receptacle of the vbus. the type-c features of this evk can be evaluated by connecting a usb type-a captive cable or type-a plug device such as a mouse or a usb memory stick.
| quick start guide | user's guide |
|---|---|
