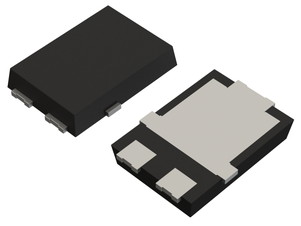

100v 8a, to-277ge, 超低ir sbdrb048rsm10s是一款超低ir的肖特基势垒二极管。该产品非常适用于开关电源、续流二极管和反接保护应用。
本产品不建议使用于车载设备。
主要规格
特性：
configuration
single
package code
to-277a
mounting style
surface mount
number of terminal
3
vrm[v]
100
reverse voltage vr[v]
100
average rectified forward current io[a]
8
ifsm[a]
160
forward voltage vf(max.)[v]
0.84
if @ forward voltage [a]
8
reverse current ir(max.)[ma]
0.0034
vr @ reverse current[v]
100
storage temperature (min.)[°c]
-55
storage temperature (max.)[°c]
175
package size [mm]
4.6x6.5 (t=1.2)
特点：
- high reliability
- power mold type
- ultra low ir
