baw156hyfh是低ir的开关二极管。适合一般开关用途。是符合aec-q101标准的高可靠性产品。

主要规格


型号 | baw156hyfht116
status | 可购买

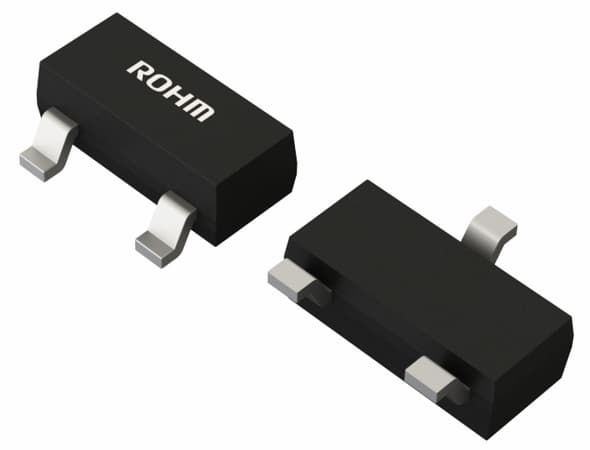

封装 | sot-23
包装形态 | taping
包装数量 | 3000
最小独立包装数量 | 3000
rohs | yes

特性:

configuration

a-common

package code

sot-23

mounting style

surface mount

number of terminal

3

vrm[v]

100

reverse voltage vr[v]

80

average rectified forward current io[a]

0.215

ifm[a]

0.5

forward voltage vf[v]

1.25

if @ forward voltage [ma]

150

reverse current ir[µa]

0.005

vr @ reverse current [v]

75

trr[ns]

3000

if @ trr [ma]

10

storage temperature (min.)[°c]

-65

storage temperature (max.)[°c]

150

package size [mm]

2.9x2.4 (t=1.15)

common standard

aec-q101 (automotive grade)

特点:

  • high reliability
  • small mold type
  • low ir
