整流二极管主要规格
特性：
configuration
single
package code
sod-323he
mounting style
surface mount
number of terminal
2
vrm[v]
600
average rectified forward current io[a]
0.2
ifsm[a]
1
forward voltage vf(max.)[v]
1.1
if @ forward voltage [a]
0.2
reverse current ir(max.)[ma]
0.001
vr @ reverse current [v]
600
storage temperature (min.)[°c]
-55
storage temperature (max.)[°c]
150
package size [mm]
1.4x2.5 (t=0.8)
特点：
- small mold type (tumd2sm)
- high voltage
- low vf type.
reference design / application evaluation kit
-
non-isolated pwm type buck convertor 8w 20v output
| user guide | schematic | part list | layout (pdf) | layout (gerber) |
|---|---|---|---|---|
-
- evaluation board - bm2p109tf-evk-001
non-isolation buck converter pwm method output 2 w 10 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p129tf-evk-001
non-isolation buck converter pwm method output 2 w 12 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p139tf-evk-001
non-isolation buck converter pwm method output 2.6 w 13 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p159t1f-evk-001
non-isolation buck converter pwm method output 2.6 w 15 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p189tf-evk-001
non-isolation buck converter pwm method output 3 w 18 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p209tf-evk-001
non-isolation buck converter pwm method output 3 w 20 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p249tf-evk-001
non-isolation buck converter pwm method output 3 w 24 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p129tf-evk-002
non-isolation buck converter pwm method output 2w -12v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p161w-evk-001
non-isolation buck converter pwm method output 10w 16.5v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p121x-evk-001
non-isolation buck converter pwm method output 9 w 12 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p141x-evk-001
non-isolation buck converter pwm method output 10 w 14 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p151x-evk-001
non-isolation buck converter pwm method output 12 w 15 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p0161-evk-001
non-isolation buck converter pwm method output 7.5w 15v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p0161-evk-002
non-isolation buck converter pwm method output 6w 12v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
non-isolation buck converter pwm method output 15 w 15 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-

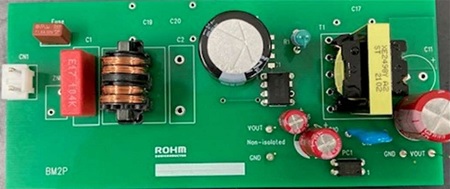

non-isolation buck converter pwm method output 12 w 12 v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm1z002fj-evk-001
non-isolated ac voltage detection zero crossing
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm1z002fj-evk-002
isolated ac voltage detection zero crossing
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm1z102fj-evk-001
ac voltage detection zero-cross ic high precision dc voltage output type
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
