标准整流二极管主要规格
特性：
configuration
single
package code
sod-323he
mounting style
surface mount
number of terminal
2
vrm[v]
400
average rectified forward current io[a]
0.2
ifsm[a]
1
forward voltage vf(max.)[v]
1.1
if @ forward voltage [a]
0.2
reverse current ir(max.)[ma]
0.001
vr @ reverse current [v]
400
storage temperature (min.)[°c]
-55
storage temperature (max.)[°c]
150
package size [mm]
1.4x2.5 (t=0.8)
特点：
- small mold type (tumd2sm)
- low vf type.
reference design / application evaluation kit
-
- evaluation board - bm2p0161-evk-003
isolation fly-back converter pwm method output 24w 12v
| user's guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p016t-evk-003
isolation fly-back converter pwm method output 48 w 12 v
| user's guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-

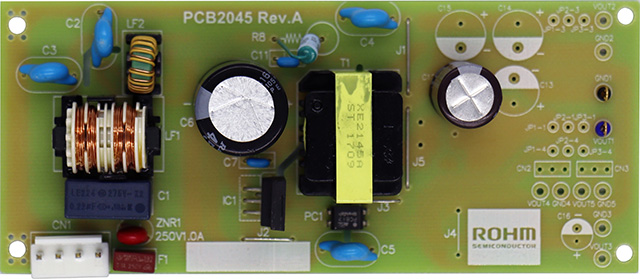

- evaluation board - bm2p016t-evk-004
isolation fly-back converter pwm method output 48 w 24 v
| user's guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2scq123t-evk-001
built-in sic mosfet isolation fly-back converter qr method output 48 w 24 v
| user's guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2sc123fp2-evk-001
built-in sic mosfet isolated fly-back converter qr method output 48 w 24 v
| user's guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-

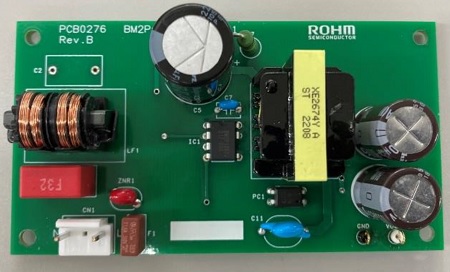

- evaluation board - bm2p10b1j-evk-001
flyback type pwm mode isolated 12v 2.0a 24w
| user's guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-

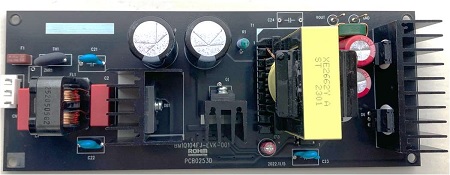

- evaluation board - bm1q104fj-evk-001
quasi-resonant method isolated 90w 20v 4.5a
| user's guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-

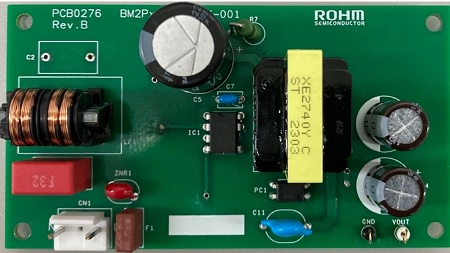

- evaluation board - bm2p13b1j-evk-001
flyback type pwm mode isolated 12v 1.4a 16.8w
| user's guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-

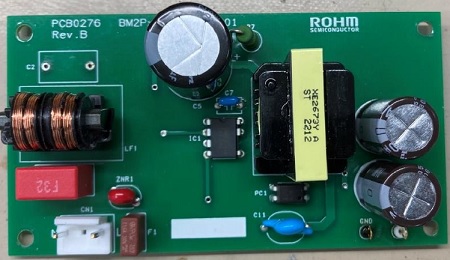

flyback type pwm mode, isolated 12v 2.0a 24w bm2p06b1j evaluation board
| user's guide | schematic | part list | layout (pdf) |
|---|---|---|---|
