逐次比较型 a/d转换器 12bit, 0.5msps~1msps, 2.7v~5.25v, 单通道, spi接口
bu79100g-la
主要规格
特性：
resolution[bit]
12
number of channels
1
sampling rate (max.)[msps]
1
supply voltage(min.)[v]
2.7
supply voltage(max.)[v]
5.25
i/f
spi
operating temperature (min.)[°c]
-40
operating temperature (max.)[°c]
85
package size [mm]
2.9x2.8 (t=1.25)
特点：
- long time support product for industrial applications
- maximum 1msps sampling rate
- low power consumption
- small ssop6 package compatible with sot23-6
- serial interface compatible with spi/qspi/microwire
- operational supply voltage range: 2.7v to 5.25v
- single-ended input
- output code in straight binary format
reference design / application evaluation kit
-

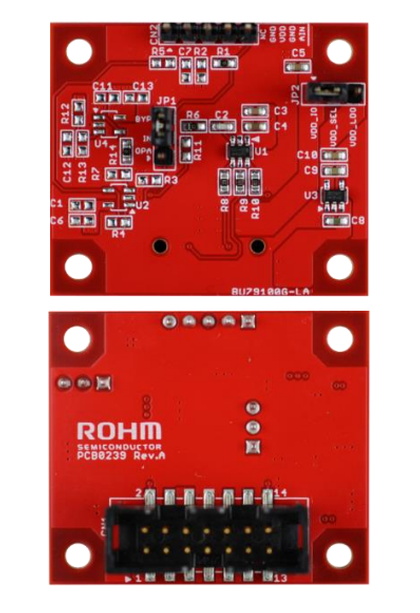

- evaluation board - bu79100g-la-evk-001
bu79100g-la-evk-001 is an evaluation board for rohm's a/d converter bu79100g-la. you can evaluate bu79100g-la easily by using this evaluation board, the adc evaluation kit "rkx-evk-001" sold separately and the adc windows gui provided free of charge from rohm.
| user guide |
|---|
